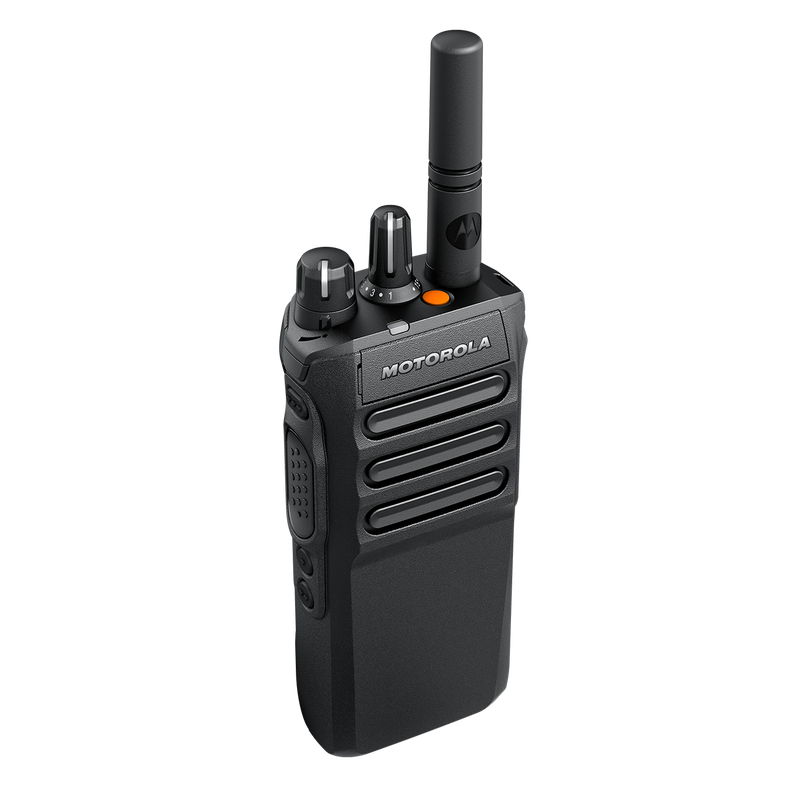

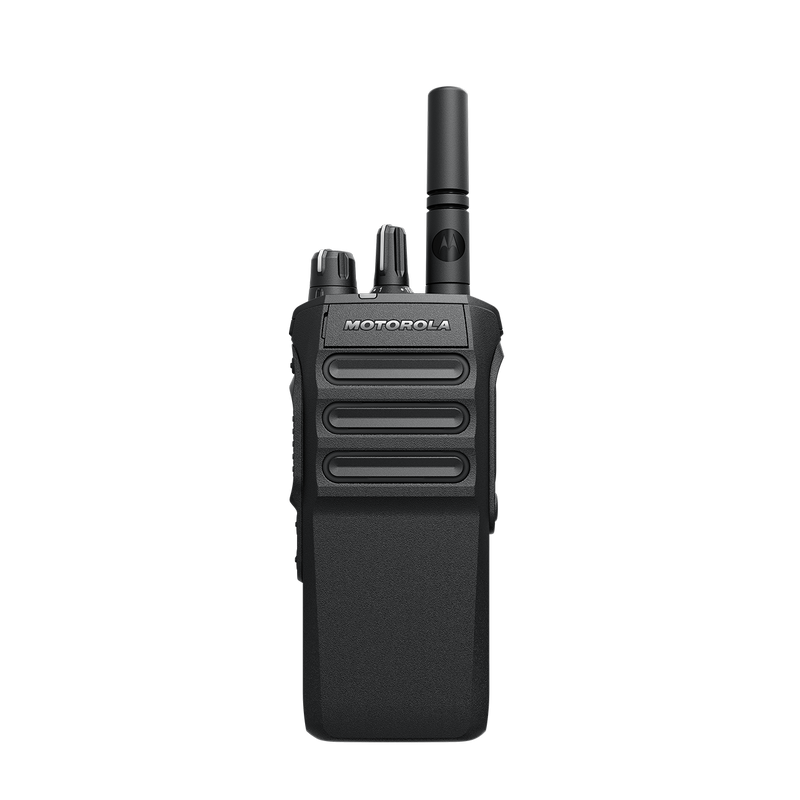

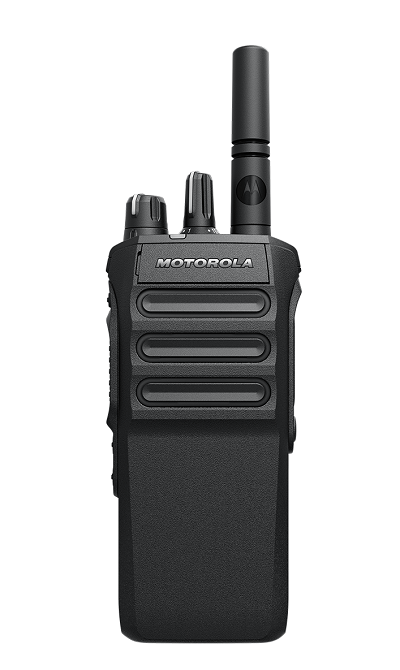

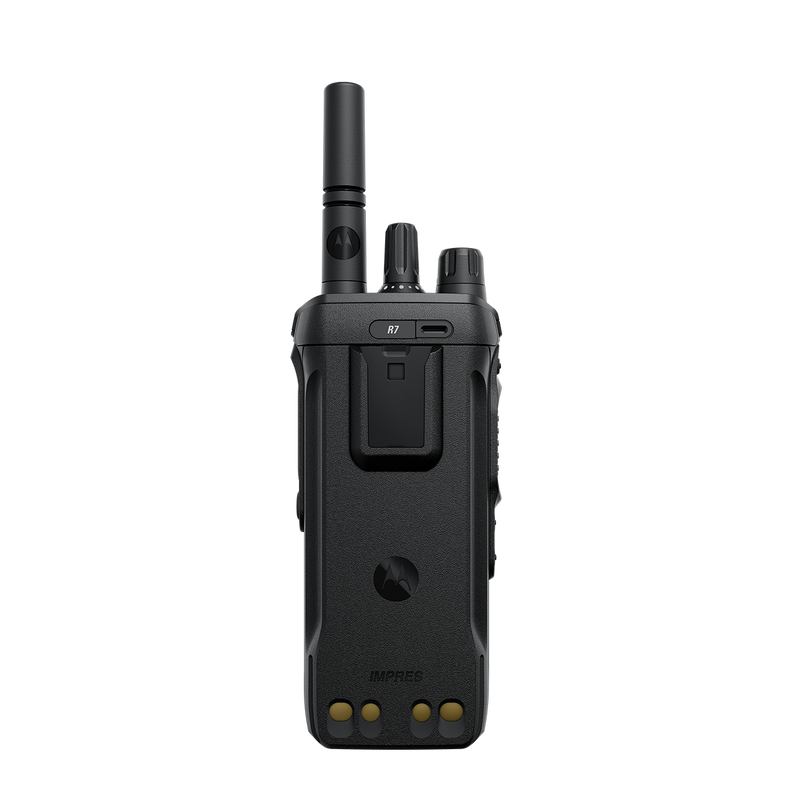

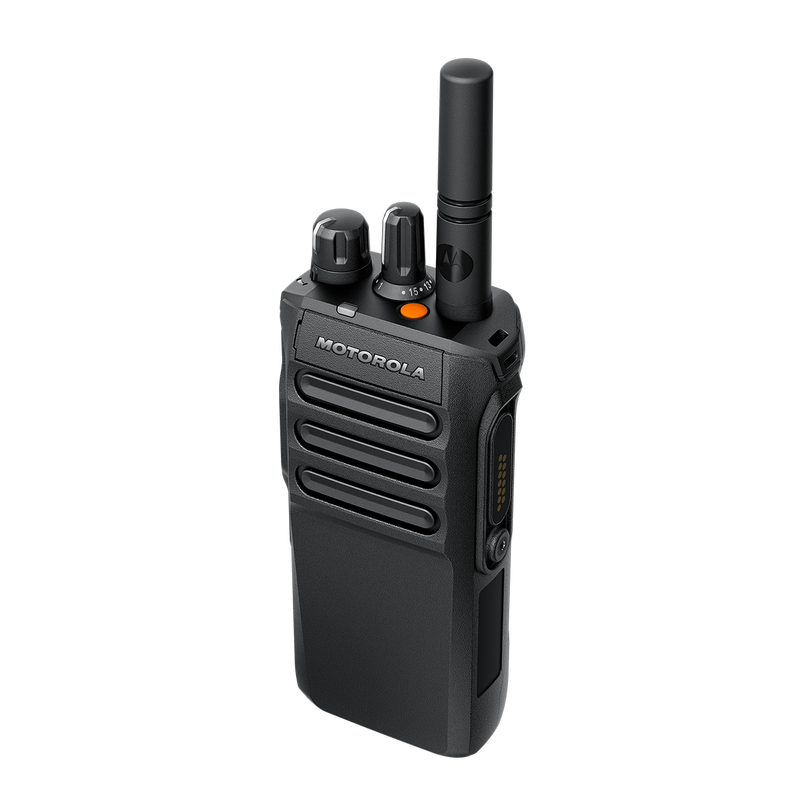

Motorola R7a (NKP) Digital Two Way Radio

Save £105.00 Save £105.00
Original price £560.00
Original price £519.00 - Original price £560.00
Original price £560.00
Current price £455.00
£425.00 - £455.00
Current price £455.00
+ VAT
Walkie Talkies

Mototrbo R7a Radio - Non-Keypad

The ideal replacement for the Motorola DP4400e. This radio is built to military standard 810D with IP68 Dust & Water Intrusion rating. The radio is easy replacement and is ideal for 85% of our customers whether that be in the events and security industry or used for airports and transport links.

The radio is very easy to use and the non-keypad display means it's a simple Push to Talk solution offering a professional walkie talkie for the business user. The radio has an emergency button located on the top of the radio which can be held to notify other staff members of any dangers or concerns.

This radio is perfect for security companies working in both urban and rural environents. The VHF version has always been ideal for rural environments like oil fields, security compounds offering long distance with its new antenna technology working alongside digital networks and mobile vehicle radios. The UHF is often used for large building with concrete construction as the frequency is designed to bounce off the walls offering better capability in urban environments like cities and large shopping centres.

The R7a Radio uses the same chargers as the Motorola DP4000 series so you can keep cost down when migrating, but the batteries are different as well as the audio connector for accessories.

The radio works in both digital or analogue mode so you can use it with your old fleet of analogue radios and then at the switch of a channel, work with your new digital radios on other projects.

The radio also comes with the enhanced privacy option as standard offering you 40-bit encryption which will work alongside your existing DP4000 fleet of radios. The R7a can also work on the IP site connect repeater networks extending the range and coverage of your network.

The radio also uses the latest noise filters to remove and reduce background noise in any environment. Ensuring you communications are sent in clear voice so they can be easily heard. This makes the radios ideal for factories, quarries, refineries and loud hospitality events like concerts & Festivals.

MOTOTRBO R7 Options

The new Motorola R7 radio series is here offering a replacement for the Motorola DP4000 series. The models come in 3 main options.

The R7a - The new radio for the everyday user offering a no display but simple and easy to use but built to last. It comes with all the features for 85% of our customers.

The R7 Capable - The radio is supplied with additional features that can be activated at any time via purchasing additional product keys and unlocking them.

The R7 Premium - The radio is supplied with all the features unlocked apart from AES 256bit Encryption that still needs to be purchased separately.



Please click here to see the compatible accessories for this radio.

Why_Buy_From_Radio-Shop.UK

Features

  • VHF (136-174MHz); UHF (400-527MHz)
  • 64 channels
  • Large, textured push-to-talk button for ease of use
  • Analogue & Digital
  • Tri-colour LED for clear visual feedback on radio operating status
  • Emergency button
  • Quick, easy-to-use Group, Individual and All-call capability
  • Sophisticated Emergency Calls
  • Voice Announcement
  • Remote Monitor features
  • Home Channel Reminder
  • Priority Scan
  • Late Entry
  • Basic / Enhanced Privacy
  • AES256 Encryption via Software Purchase
  • VOX Capability
  • Transmit Interrupt
  • Intelligent Audio allowing the radio volume to automatically adjust to compensate for background noise
  • IP68
  • Direct Mode (including Dual Capacity Direct Mode)
  • IP Site Connect (Single and Multi-Site)

Audio Features

  • Intelligent Audio in Analogue & Digital Mode
  • IMPRES Audio
  • Automatic Acoustic Feedback Suppressor
  • Microphone Distortion Control
  • User Selectable Audio Profile
  • Trill Enhancement
  • SIngle Microphone Noise Cancellation



Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.


What's in the Box?

  • Motorola R7a Handheld Radio - 1 Unit
  • Battery
  • IMPRES Single-Unit Charger
  • Antenna
  • Dust Cover
  • Belt Clip Options
  • In-box Documentation

Model Variants

Radio Part Number Band Frequency
R7a NKP MDH06JDC9VA2AN VHF 136-174MHZ
R7a NKP MDH06RDC9VA2AN UHF 400-527MHZ

Specifications

Frequency Range VHF 136 - 174 MHz UHF 400 - 527 Mhz
Power Output VHF 1-5W UHF 1-4W
Battery Life - 2200mAh 20 hr Digital / 15 hr Analogue
Channel Capacity 64
RX Rated Audio Power Output 3W
Battery 2450mAh Core Battery
Antenna Impedance 50 Ω
Dimensions (HxWxD) 132 x 56 x 37 mm
Weight 319g



For more details, please download the product brochure

Motorola R7 Accessories

There is a very large selection of Motorola R7 Radio Accessories available and we are constantly updating our website as and when they are released. Please see the latest parts below and if the item does not have a link to the product page please email us sales@radio-shop.uk and we will be able to provide you with a price and lead time.

Motorola R7 Batteries Part
IMPRES Li-Ion 3200mAh, IP68, TIA PMNN4810
IMPRES Li-Ion 2850mAh, IP68 PMNN4809A
IMPRES Li-Ion 2200mAh, IP68 PMNN4807A
Motorola Original Li-Ion 2450mAh PMNN4808A


Motorola R7 Earpieces & RSM Part
1-Wire IMPRES™ Survelliance Kit, with Audio Translucent Tube PMLN8341A
2-Wire IMPRES™ Survelliance Kit, with Audio Translucent Tube PMLN8342A
3-Wire IMPRES™ Survelliance Kit, with Audio Translucent Tube PMLN8343A
WM500 Wireless PoC Remote Speaker Microphone PMMN4127A
RM780 IMPRES™ Remote Speaker Microphone PMMN4128A
RM730 IMPRES™ Remote Speaker Microphone PMMN4131A
RM760 IMPRES™ Remote Speaker Microphone PMMN4140A



Motorola R7 Chargers - Same as DP4000 Series Part
IMPRES 6-Way Multi-Unit Charger UK PMPN4290
IMPRES 6-Way Multi-Unit Charger Euro PMPN4289A
MOTOTRBO Travel Charger - Cigrette Lighter NNTN8525
IMPRES Single Unit Charger (UK Switch Mode PSU) PMPN4572A
IMPRES Single Unit Charger (Euro Switch Mode PSU) PMPN4577A
Single Charger Power Supply UK Adaptor PS000037A02
Single Charger Power Supply Euro Adaptor PS000037A01





Motorola R7 Carry Cases Part
Hard Leather Carry Case, 3" Swivel Belt Loop, Display PMLN8299A
Hard Leather Carry Case, 2.5" Swivel Belt Loop, Display PMLN8300A
Hard Leather Carry Case, 3" Fixed Belt Loop, Display PMLN8301A
Hard Leather Carry Case, 3" Swivel Belt Loop, Non Display PMLN8302A
Hard Leather Carry Case, 2.5" Swivel Belt Loop, Non Display PMLN8303A
Hard Leather Carry Case, 3 Fixed Belt Loop, Non Display PMLN8304A
2.5" Belt Clip PMLN7008A
2" Belt Clip PMLN4651A
Universal Nylon Chest Pack HLN6602A
Waterproof Bag HLN9985B



Motorola R7 Peltor Headsets Part
Noise Cancelling Heavy Duty Headset - Neckband Version - TIA495 PMLN8085
Noise Cancelling Heavy Duty Headset - Headband Version - TIA495 PMLN8086A
3M™ Peltor Nexus Body Push-to-Talk Adapter PMLN8297A
3M™ Peltor Headband Headset w/Nexus Connector PMLN8265A
3M™ Peltor Neckband Headset w/Nexus Connector PMLN8266A
3M™ Peltor Hard Hat Headset Attachment w/Nexus Connector PMLN8267A



Request a quote
