Kenwood NX-5300E UHF Digital Two Way Radio_Radio-Shop UK

Kenwood NX-5300E UHF Digital Two Way Radio

£605.00

inc. VAT: £726.00

726.00
Walkie Talkies

Kenwood NX-5300E UHF NEXEDGE/P25 Digital/Analogue Portable Two Way Radio

The Kenwood NX-5300E UHF NEXEDGE/P25 Digital/Analogue Portable Two Way Radio with GPS and Full Keypad from Radio-Shop.uk is one of the Kenwood NX-5000 series of radios supporting Digital Protocols and FM Analogue.

Designed for front line professionals, KENWOOD has drawn on its extensive experience, its acclaimed technologies, and an expert analysis of market needs to develop NEXEDGE. This innovative digital solution satisfies the most stringent requirements of today's mission-critical radio users. And now NEXEDGE leaps further ahead of the competition with NX-5000 Series portable and mobile radios, ready to serve in all public sector, commercial and public safety roles with flawless performance and advanced feature sets.

And because these radios are compatible with three different digital protocols — NXDN, DMR and P25 — if you are planning migration from a legacy system, not only can you go on using your current radios, but you can be confident that, when you make the move, your NX-5000 radios will be deployed and ready.

Please click here to see the compatible accessories for this radio

Why Buy Two Way Radios From Radio-Shop.uk

Features

  • Multi-mode - NEXEDGE NXDN Digital Air Interface and Analogue FM
  • P25 Conventional/P25 Trunking Phase 1 & 2 via License key

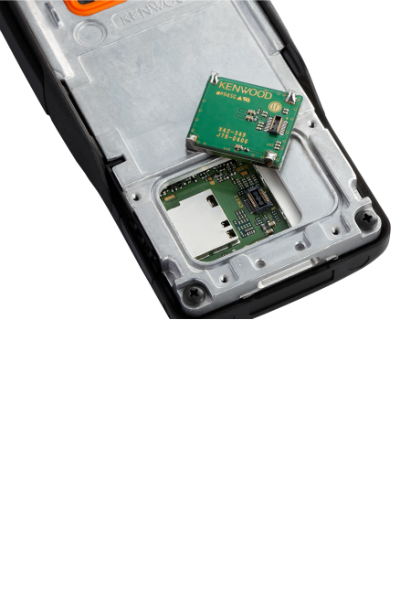

  • Built-in GPS Module and antenna
  • Built-in Bluetooth V3.0
  • Extra Large Channel Capacity (1024 channels/128 zones) expandable to 4000 channels via License key
  • Motion Sensor/Man-Down function
  • Built-in 56-bit DES Encryption (upgradeable to AES standard)
  • Micro-SD card slot
  • True-USB port
  • Waterproof to IP67/IP68. MIL-STD 810G Certification
  • DMR Tier 2 Conventional (requires KWD-5300 CV license)
  • 5-tone

Basic Package includes

  • Belt Clip
  • Instruction Manual
  • Screw Set



NOTE: The 24 months warranty only applies to the radio, it does not apply to any batteries or accessories shipped within the model package. Service From the Start packages are also available.

Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.

Basic Specifications

Frequency Range 400 - 470 MHz
Number of Channels 1024
Talk Groups Yes
Channel Spacing - Analogue - Wide/Mid/Narrow 25 kHz/20 kHz/12.5 kHz
Channel Spacing - Digital - Wide/Narrow 12.5 kHz/6.25 kHz
Battery Life With KNB-L1: 5-5-90 = 10 hours / 10-10-80 = 6.5 hours
With KNB-L2: 5-5-90 = 12.5 hours / 10-10-80 = 8.5 hours
With KNB-L3: 5-5-90 = 17 hours / 10-10-80 = 11 hours
With KNB-N4: 5-5-90 = 12.5 hours / 10-10-80 = 8.5 hours
Frequency Stability ± 1 ppm (-30 °C to + 60 °C)
Operating Temperature Range -30 °C to + 60 °C
Operating Voltage 7.5 V DC ± 20%
Dimensions With KNB-L1: 58.0 x 138.9 x 36.5 mm
With KNB-L2: 58.0 x 138.9 x 39.5 mm
With KNB-L3: 58.0 x 138.9 x 44.9 mm
With KNB-N4: 58.0 x 166.4 x 45.2 mm

- Projections not included -
Weight (net) With KNB-L1: 382 g
With KNB-L2: 406 g
With KNB-L3: 449 g
With KNB-N4: 579 g


For more information and specifications please download the NX5000 Series Product Brochure and the NX-5300E Product Specification
