Kenwood NX-5800E UHF NEXEDGE/P25 Digital/Analogue Mobile Radio with GPS

by Kenwood
Original price £803.99 - Original price £803.99
Original price
£803.99
£803.99 - £803.99
Current price £803.99
+ VAT
Walkie Talkies

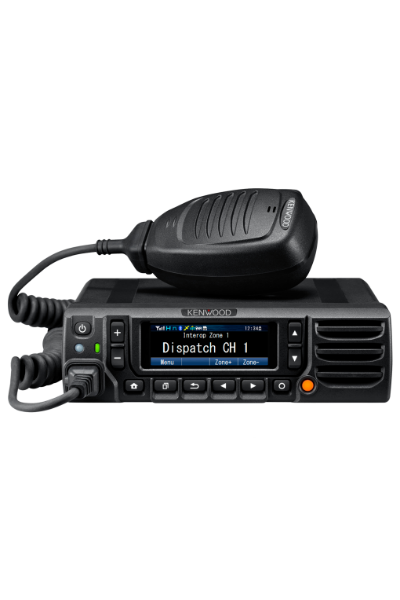

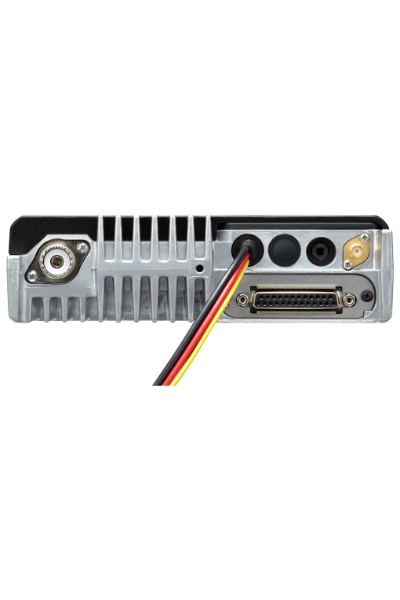

Kenwood NX-5800E UHF NEXEDGE/P25 Digital/Analogue Mobile Radio with GPS

The Kenwood NX-5800E UHF NEXEDGE/P25 Digital/Analogue Mobile Radio with GPS from Radio-Shop.uk is one of the Kenwood NX-5000 series of radios supporting Digital Protocols and FM Analogue.

Designed for front line professionals, KENWOOD has drawn on its extensive experience, its acclaimed technologies, and an expert analysis of market needs to develop NEXEDGE. This innovative digital solution satisfies the most stringent requirements of today's mission-critical radio users. And now NEXEDGE leaps further ahead of the competition with NX-5000 Series portable and mobile radios, ready to serve in all public sector, commercial and public safety roles with flawless performance and advanced feature sets.

And because these radios are compatible with three different digital protocols — NXDN, DMR and P25 — if you are planning migration from a legacy system, not only can you go on using your current radios, but you can be confident that, when you make the move, your NX-5000 radios will be deployed and ready.

Please click here to see the compatible accessories for this radio

Why Buy Two Way Radios From Radio-Shop.uk

Features

  • Multi-mode - NEXEDGE NXDN Digital Air Interface and Analogue FM
  • P25 Conventional/P25 Trunking Phase 1 & 2 via License key
  • Operates in NXDN Digital Conventional and FM Analogue Modes, even on the same channel
  • Built-in Bluetooth V3.0
  • Extra Large Channel Capacity (1024 channels/128 zones) expandable to 4000 channels via License key
  • Built-in 56-bit DES Encryption (upgradeable to AES standard)
  • Micro-SD card slot
  • True-USB port
  • 2.55" (154x422 pixels) Full-colour transmissive LCD Display
  • DMR Tier 2 Conventional (requires KWD-5300 CV license)
  • 5-tone

Basic Package includes

  • D.C. Cable
  • Fuse 15A
  • Instruction Manual
  • Microphone
  • Microphone Hanger
  • Mounting Bracket
  • Screw Set

NOTE: The 24 months warranty only applies to the radio, it does not apply to any batteries or accessories shipped within the model package. Service From the Start packages are also available.

Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.

Basic Specifications

Frequency Range - E Type 400-470 MHz
Number of Channels 1024
Number of Zones 128
Channel Spacing - Analogue - Wide/Mid/Narrow 25 kHz/20 kHz/12.5 kHz
Channel Spacing - Digital - Wide/Narrow 12.5 kHz/6.25 kHz
Current Drain Standby: 0.45 A
Receive: 2.3 A
Transmit: 9.0 A
Frequency Stability ± 1 ppm (-30 °C to + 60 °C)
Operating Temperature Range -30 °C to + 60 °C
Power Supply 13.2 V DC (10.8 - 15.6 V DC)
Dimensions W x H x D: 171 x 48 x 176 mm
- Radio with Control Head -
Weight (net) 1.6 kg
- Radio with Control Head -


For more information and specifications please download the
NX5000 Series Product Brochure and the NX-5800E Product Specification
