Motorola DP4801ex ATEX Digital Two Way Radio

Call about Stock
Original price £1,240.00 - Original price £1,250.00
Original price
£1,250.00
£1,240.00 - £1,250.00
Current price £1,250.00
+ VAT
Walkie Talkies

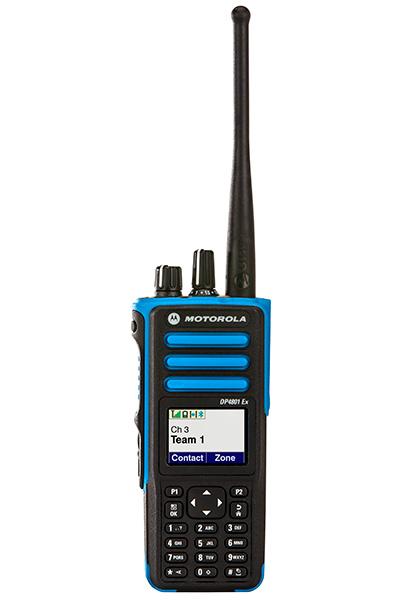

Motorola DP4801ex ATEX Digital Two Way Radio

Using the Motorola DP4801ex ATEX Digital Two Way Radio from Radio-Shop.uk, workers can confront threats from explosive gas or combustible dust, on an oil rig or in an open mine, daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital radio stands out.

The portable, fully-featured and certified Motorola DP4801ex ATEX Digital Two Way Radio delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the DP4801 Ex features a 5-line display, full keypad, up to 1,000 channel capacity, five programmable buttons, emergency button, man down and lone worker functions and IP67 rating for submersibility.

Please click here to see the compatible accessories for this radio.

Motorola DP4801ex ATEX Digital Two Way Radio


Technical Data

Potential Self-quieting Frequencies to be avoided:
VHF: 139.200MHz±10KHz, 144.000MHz±10KHz, 148.800MHz±10KHz, 151.000MHz±10KHz, 151.740MHz±10KHz, 153.600MHz±10KHz, 158.400MHz±10KHz, 163.200MHz±10KHz, 168.000MHz±10KHz,
171.900MHz±10KHz, 172.800MHz±10KHz

UHF: 403.200MHz±10KHz, 408.000MHz±10KHz, 412.800MHz±10KHz, 416.000MHz±10KHz, 422.400MHz±10KHz, 432.000MHz±10KHz, 440.000MHz±10KHz, 441.600MHz±10KHz, 449.550MHz±10KHz,
451.200MHz±10KHz, 456.000MHz±10KHz, 460.800MHz±10KHz, 468.000MHz±10KHz

Rating:
Gas: ATEX: Class II 2G Ex ib, IIC T4 Gb, IECEx: Ex ib IIC T4 Gb
Dust: ATEX: Class II 2D Ex ib, IIIC T130°C Db, IECEx: Ex ib IIIC, T130°C Db
Mining: ATEX: Class I M2 Ex, ib I Mb, IECEx: Ex ib I Mb


Features

  • VHF (136-174MHz); UHF1 (403-470MHz)
  • 1000 channels
  • Large Full-colour, 5-line display - operating in Day or Night mode for easy viewing
  • Tri-colour LED for clear visual feedback on radio operating status
  • Easy-to-use menu navigation keys enable intuitive user interface
  • Full Alphanumeric Keypad enables flexible radio operation and text messaging
  • Large, textured push-to-talk button for ease of use
  • 5 programmable buttons to improve ease-of-use and increase operator efficiency
  • Emergency button to help ensure rapid response to critical incidents
  • Quick, easy-to-use Group, Individual and All-call capability
  • Digital Phone Patch capability
  • Sophisticated Emergency Calls help ensure employee safety
  • PTT ID helps improve communications efficiency and system discipline
  • Remote Monitor features help ensure employee safety and enable fast assessment of remote user status
  • Elegant channel scanning schemes help ensure calls are received first time every time
  • Privacy Features
  • VOX Capability
  • Transmit Interrupt
  • Man Down
  • Lone Worker
  • Analogue Mode Compatible
  • 5 Tone Signalling
  • Factory Installed Option Board
  • Integrated GPS
  • Over the Air Programming
  • Intelligent Audio allowing the radio volume to automatically adjust to compensate for background noise
  • IP67 ingress protection (also certified to the highest ingress protection available under ATEX/IECEx test conditions - IP64)
  • Direct Mode (Including Dual Capacity Direct Mode) / Repeater Mode
  • IP Site Connect (Conventional Multiple Site Coverage)
  • Capacity Plus (Single Site Trunking)
  • Linked Capacity Plus (Multi Site Trunking)

What's in the Box?

    • 2075mAh (Typical) Li-ion Battery (NNTN8359_)
    • IMPRES Single-Unit Charger
    • Antenna
    • Dust Cover (15012157001)
    • 2.5" Belt Clip (PMLN6086_)
    • In-box Documentation



NOTE: The 24 months warranty only applies to the radio, it does not apply to batteries or accessories shipped within the model package

Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.


Specifications

Frequency Range VHF 136 - 174 MHz UHF 403 - 470 Mhz
Power Output 1W
Channel Capacity 1000
Power Supply 7.4V
Battery Li-Ion 2075mAH
Antenna Impedence 50 Ω
Dimensions (HxWxD) 138.5 x 56.7 x 39.8 mm with standard battery, not including antenna
Weight 482.5g



For more specifications please download the product brochure.
