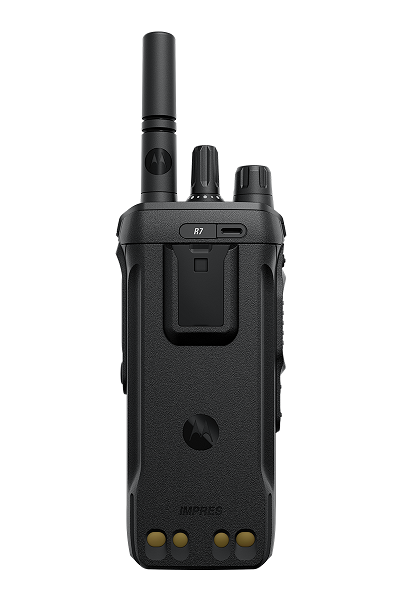

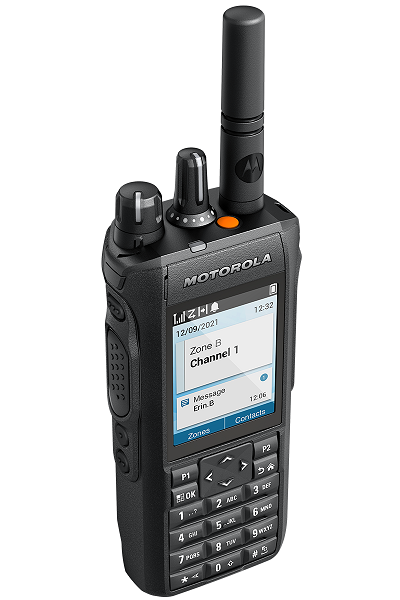

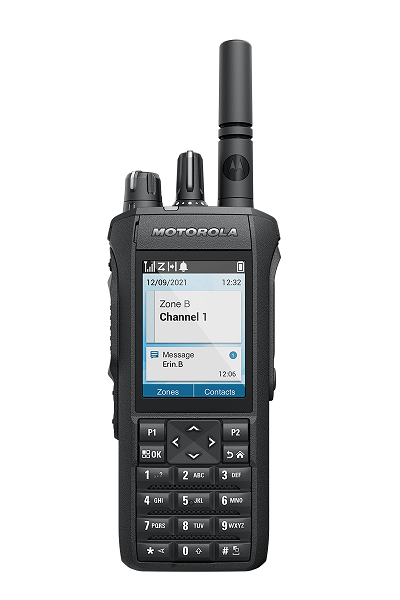

Motorola MOTOTRBO R7 Capable Two Way Radio (Full Keypad)
The Motorola MOTOTRBO R7 Capable Full Keypad is a professional two way radio designed for users who need clear audio, rugged performance, and the flexibility to add advanced features in the future. With its full keypad and display, the R7 Capable supports additional functionality such as caller ID, alarm notifications, and text messaging, making it a strong choice for demanding business and operational environments.
Built on Motorola Solutions’ MOTOTRBO platform, the R7 Capable supports both analogue and digital operation and is designed as an upgrade path for users moving from older Motorola DP4000 series radios.
Key Benefits
| Full Keypad & Display |
Supports features such as caller ID, alarm notifications, and text messaging for users who need more control and information on the radio. |
| Upgradeable Feature Set |
Advanced features can be activated later by licence key, allowing the radio system to grow as operational needs change. |
| Clear Audio in Noisy Environments |
Advanced dual microphone noise suppression and intelligent audio help improve speech clarity in loud workplaces. |
| Analogue & Digital Flexibility |
Works with existing analogue radio fleets while supporting migration to digital MOTOTRBO systems. |
| Rugged Construction |
IP68-rated design helps protect the radio in dust and water, making it suitable for demanding working conditions. |
| Enhanced Safety Support |
Emergency features are built in, and additional licensed options such as Man Down can be enabled if required. |
| Secure Communications |
Supports Basic and Enhanced Privacy as standard, with AES 256 encryption available via separate software licence. |
| Cost-Effective Upgrade Path |
Uses the same charger family as the DP4000 series, helping reduce migration costs for existing users. |
Reliable Communication for Professional Use
- Analogue and digital (DMR) operation
- Full keypad and display for expanded radio functionality
- Suitable for security, events, transport, airports, facilities, and industrial users
- Compatible with MOTOTRBO systems and repeaters
Features Available to Activate Later
The R7 Capable model is designed to support additional licensed features that can be enabled as your requirements change.
- Man Down
- Indoor location tracking support
- GNSS (GPS)
- Bluetooth 5.2
- Wi-Fi 2.4 GHz and 5 GHz
- Audio recording
Please note: AES 256-bit encryption still requires an additional licence key.
Clear Audio & Strong Performance
The Motorola R7 Capable uses advanced audio technology to improve voice quality in demanding environments such as factories, transport hubs, refineries, quarries, and live events.
- Advanced dual microphone noise suppression
- Intelligent audio in analogue and digital mode
- IMPRES audio support
- Automatic acoustic feedback suppressor
- User-selectable audio profiles
Durable Design for Everyday Use
- IP68 dust and water protection
- Large textured push-to-talk button
- Emergency button for rapid alerting
- Built for demanding professional use
Battery Performance
The Motorola R7 Capable uses a high-capacity lithium-ion battery designed to support full-shift operation in typical use.
- Up to 19 hours battery life in digital mode
- Up to 14.5 hours battery life in analogue mode
- Compatible with Motorola IMPRES charging systems
Security & Privacy Features
The Motorola R7 Capable supports several privacy and security options for professional users.
- Basic Privacy
- Enhanced Privacy
-
AES 256 Encryption via software purchase
Key Features
- VHF 136–174 MHz or UHF 400–527 MHz
- 64 channels
- Analogue & Digital
- Full keypad and display
- Tri-colour LED status indicator
- Emergency button
- Group, Individual and All-Call capability
- Voice announcement
- Remote monitor
- Home channel reminder
- Priority scan
- Late entry
- VOX capability
- Transmit interrupt
- Direct mode including Dual Capacity Direct Mode
- IP Site Connect (single and multi-site)
What’s in the Box
- Motorola R7 Capable Handheld Radio
- Battery
- IMPRES Single-Unit Charger
- Antenna
- Dust Cover
- Belt Clip
- In-box Documentation
Licensing Information (UK)
The Motorola R7 Capable is a licensed two way radio. Use in the UK requires an Ofcom radio licence. We can assist with licence applications and setup if required.
Motorola R7 Capable vs Motorola DP4000 Series
The Motorola R7 Capable is a modern upgrade path for users moving from older Motorola DP4000 series radios, offering:
- Improved audio technology
- Full keypad functionality
- Upgradeable premium features
- Enhanced display-based functions such as text messaging and caller information
- Compatibility with MOTOTRBO digital systems
MOTOTRBO R7 Range Options
-
R7a: straightforward model for everyday users
-
R7 Capable: supports additional features that can be activated by licence keys
-
R7 Premium: advanced feature set enabled as standard, excluding AES 256 encryption which still requires a separate licence
Model Variants
| Model |
Part Number |
Frequency/Band |
| R7 Full Keypad Capable |
MDH06JDN9WA2AN |
136–174 MHz VHF |
| R7 Full Keypad Capable |
MDH06RDN9WA2AN |
400–527 MHz UHF |
Technical Specifications
| Frequency Range: |
VHF 136–174 MHz / UHF 400–527 MHz |
| Power Output: |
VHF up to 5W / UHF up to 4W |
| Channel Capacity: |
64 Channels |
| Battery Life: |
Up to 19 hours digital / 14.5 hours analogue |
| Battery: |
2450 mAh Core Battery |
| RX Rated Audio Power Output: |
3W |
| Antenna Impedance: |
50 Ω |
| Dimensions: |
132 x 56 x 37 mm |
| Weight: |
319 g |
Motorola R7 Accessories Overview
Below is a selection of Motorola R7 accessories with part numbers for easy identification and ordering.
Batteries
| Product |
Part Number |
| IMPRES Li-Ion 3200mAh, IP68, TIA |
PMNN4810 |
| IMPRES Li-Ion 2850mAh, IP68 |
PMNN4809A |
| IMPRES Li-Ion 2200mAh, IP68 |
PMNN4807A |
| Motorola Original Li-Ion 2450mAh |
PMNN4808A |
Earpieces & Remote Speaker Microphones
| Product |
Part Number |
| 1-Wire IMPRES Surveillance Kit with Audio Translucent Tube |
PMLN8341A |
| 2-Wire IMPRES Surveillance Kit with Audio Translucent Tube |
PMLN8342A |
| 3-Wire IMPRES Surveillance Kit with Audio Translucent Tube |
PMLN8343A |
| WM500 Wireless PoC Remote Speaker Microphone |
PMMN4127A |
| RM780 IMPRES Remote Speaker Microphone |
PMMN4128A |
| RM730 IMPRES Remote Speaker Microphone |
PMMN4131A |
| RM760 IMPRES Remote Speaker Microphone |
PMMN4140A |
Chargers
| Product |
Part Number |
| IMPRES 6-Way Multi-Unit Charger UK |
PMPN4290 |
| IMPRES 6-Way Multi-Unit Charger Euro |
PMPN4289A |
| MOTOTRBO Travel Charger - Cigarette Lighter |
NNTN8525 |
| IMPRES Single Unit Charger (UK Switch Mode PSU) |
PMPN4572A |
| IMPRES Single Unit Charger (Euro Switch Mode PSU) |
PMPN4577A |
| Single Charger Power Supply UK Adaptor |
PS000037A02 |
| Single Charger Power Supply Euro Adaptor |
PS000037A01 |
Carry Cases & Carrying Solutions
| Product |
Part Number |
| Hard Leather Carry Case, 3" Swivel Belt Loop, Display |
PMLN8299A |
| Hard Leather Carry Case, 2.5" Swivel Belt Loop, Display |
PMLN8300A |
| Hard Leather Carry Case, 3" Fixed Belt Loop, Display |
PMLN8301A |
| Hard Leather Carry Case, 3" Swivel Belt Loop, Non Display |
PMLN8302A |
| Hard Leather Carry Case, 2.5" Swivel Belt Loop, Non Display |
PMLN8303A |
| Hard Leather Carry Case, 3 Fixed Belt Loop, Non Display |
PMLN8304A |
| 2.5" Belt Clip |
PMLN7008A |
| 2" Belt Clip |
PMLN4651A |
| Universal Nylon Chest Pack |
HLN6602A |
| Waterproof Bag |
HLN9985B |
Peltor Headsets
| Product |
Part Number |
| Noise Cancelling Heavy Duty Headset - Neckband Version - TIA495 |
PMLN8085 |
| Noise Cancelling Heavy Duty Headset - Headband Version - TIA495 |
PMLN8086A |
| 3M Peltor Nexus Body Push-to-Talk Adapter |
PMLN8297A |
| 3M Peltor Headband Headset with Nexus Connector |
PMLN8265A |
| 3M Peltor Neckband Headset with Nexus Connector |
PMLN8266A |
| 3M Peltor Hard Hat Headset Attachment with Nexus Connector |
PMLN8267A |
Frequently Asked Questions
What is the Motorola R7 Capable Full Keypad used for?
The Motorola R7 Capable Full Keypad is designed for professional users who need display and keypad functionality, clear audio, and the option to unlock advanced features later.
What is the difference between the R7 Capable and R7 Premium?
The R7 Capable supports advanced features that can be activated later by licence key, while the R7 Premium has a broader premium feature set enabled as standard. AES 256 encryption still requires a separate licence on Premium models.
Does the Motorola R7 Capable require a licence in the UK?
Yes. The Motorola R7 Capable is a licensed radio and normally requires an Ofcom licence for legal use in the UK.
Can the Motorola R7 Capable be used with repeaters?
Yes, it supports MOTOTRBO systems including IP Site Connect for extended coverage over larger areas and multi-site networks.
Does the Motorola R7 Capable support text messaging?
Yes, the full keypad and display support functions such as text messaging and additional radio information features.
Can the Motorola R7 Capable be used with older analogue radios?
Yes, it supports analogue operation, allowing compatibility with older analogue radio fleets during migration to digital systems.
Does the Motorola R7 Capable support encryption?
Yes. Basic Privacy and Enhanced Privacy are supported, and AES 256 encryption is available via additional software purchase.
What features can be activated later on the R7 Capable?
Depending on licensing and system setup, features such as Man Down, GNSS, Bluetooth, Wi-Fi, audio recording, and indoor location tracking support can be activated later.
Why Choose the Motorola R7 Capable Full Keypad?
The Motorola R7 Capable Full Keypad is a strong choice for organisations that need a rugged business radio with full keypad functionality today and the flexibility to unlock additional premium features in the future.
