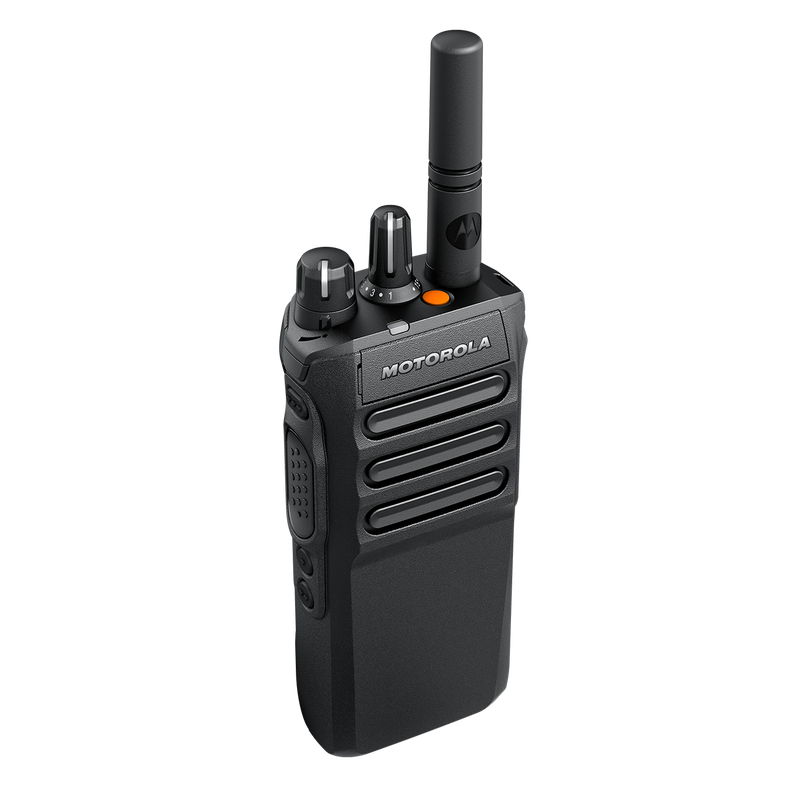

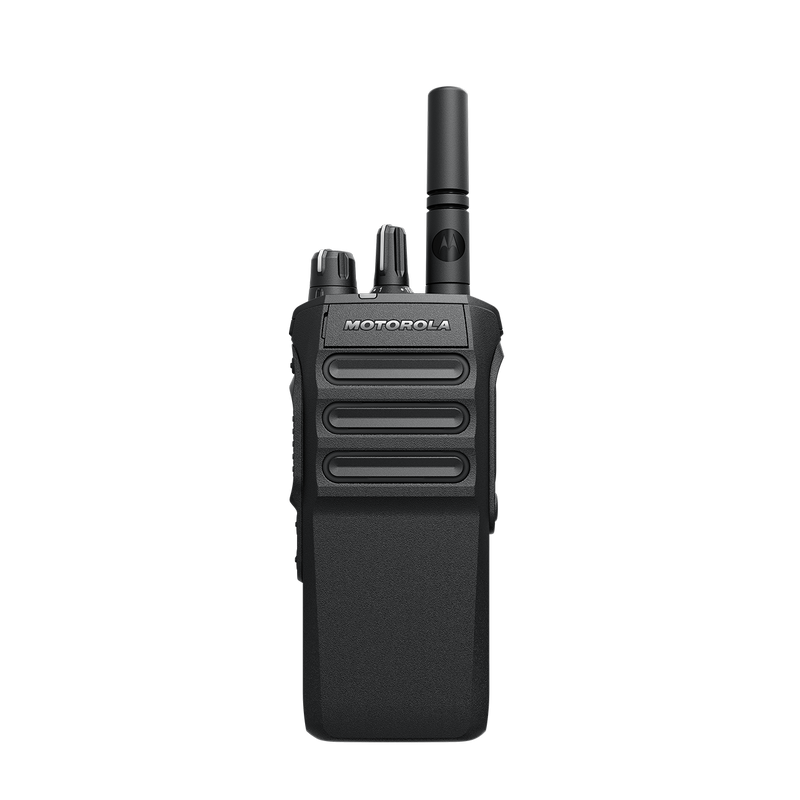

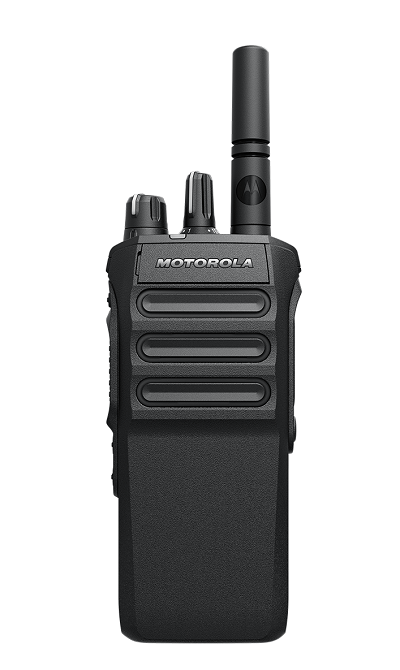

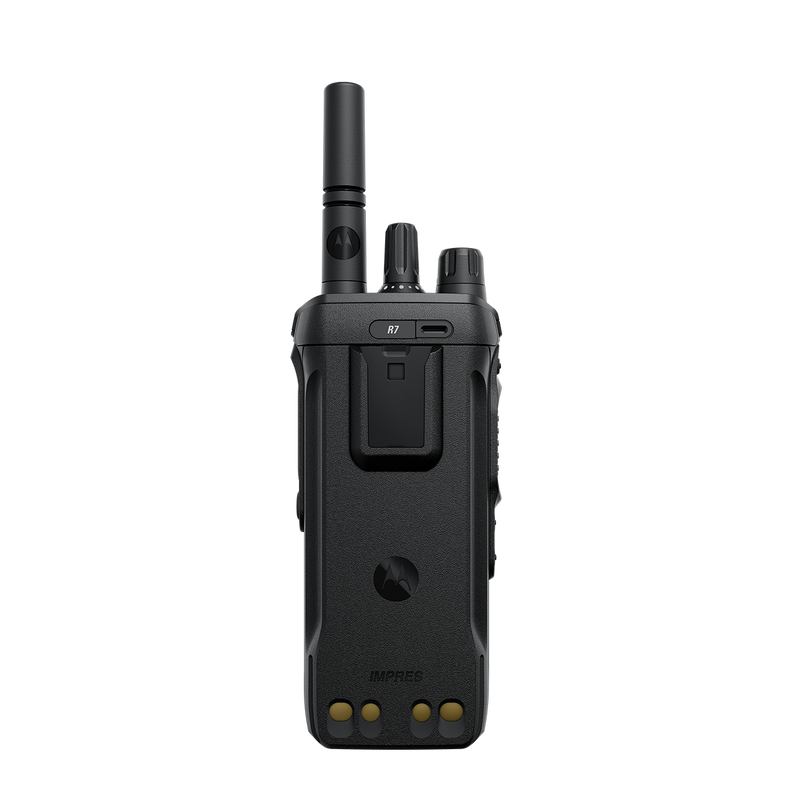

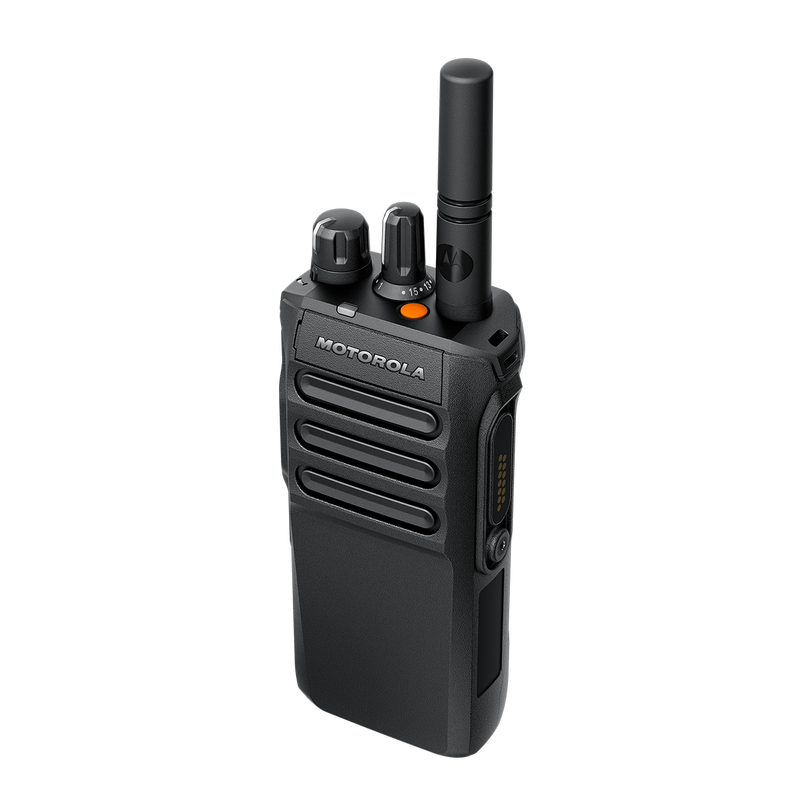

Motorola MOTOTRBO R7a Two Way Radio (Non-Keypad)
The Motorola MOTOTRBO R7a (non-keypad) is a professional-grade two way radio designed for clear, reliable communication in demanding environments. Built on Motorola’s latest MOTOTRBO platform, it delivers advanced audio performance, rugged durability, and flexible analogue and digital (DMR) operation.
As the successor to the Motorola DP4400e, the R7a is ideal for businesses looking to upgrade to a modern, high-performance radio while maintaining ease of use.
Key Benefits
| Clear Audio in Any Environment |
Advanced noise cancellation and intelligent audio ensure clear communication even in loud environments like construction sites and events. |
| Simple Push-to-Talk Operation |
Non-keypad design provides straightforward operation, ideal for teams needing quick and reliable communication. |
| Built for Harsh Conditions |
IP68-rated protection and MIL-STD durability for use in dust, water, and demanding environments. |
| Analogue & Digital Flexibility |
Works with existing analogue radios while enabling a smooth transition to digital (DMR). |
| Improved Coverage |
Compatible with IP Site Connect systems to extend communication range across large sites. |
| Enhanced Safety |
Emergency button and advanced safety features help protect staff in critical situations. |
| Secure Communications |
Supports Basic and Enhanced Privacy, with optional AES-256 encryption for higher security. |
| Future-Proof Investment |
Compatible with MOTOTRBO systems and scalable features for long-term use. |
Key Features
- Analogue and Digital (DMR Tier II)
- 64 channels
- Emergency button
- Voice announcements
- Priority scan and late entry
- VOX capability
- Transmit interrupt
- Remote monitor and radio disable/enable
- IP68 dust and water protection
- Intelligent audio and noise suppression
What’s in the Box
- Motorola R7a Radio
- Battery
- IMPRES Single Unit Charger
- Antenna
- Dust Cover
- Belt Clip
- Documentation
Model Variants
| Model |
Part Number |
Frequency/Band |
| R7a Non-Keypad |
MDH06JDC9VA2AN |
136–174 MHz VHF |
| R7a Non-Keypad |
MDH06RDC9VA2AN |
400–527 MHz UHF |
Technical Specifications
| Frequency Range: |
VHF 136–174 MHz / UHF 400–527 MHz |
| Power Output: |
VHF up to 5W / UHF up to 4W |
| Channel Capacity: |
64 |
| Battery Life: |
Up to 20 hours digital / 15 hours analogue |
| Battery: |
2450 mAh Li-Ion |
| Audio Output: |
3W |
| Dimensions: |
132 x 56 x 37 mm |
| Weight: |
319 g |
Motorola R7 Accessories Overview
Below is a selection of compatible Motorola R7 accessories with part numbers for easy identification and ordering.
Batteries
| Product |
Part Number |
| IMPRES Li-Ion 3200mAh Battery |
PMNN4810 |
| IMPRES Li-Ion 2850mAh Battery |
PMNN4809A |
| IMPRES Li-Ion 2200mAh Battery |
PMNN4807A |
| Motorola Li-Ion 2450mAh Battery |
PMNN4808A |
Audio Accessories
| Product |
Part Number |
| 1-Wire Surveillance Kit |
PMLN8341A |
| 2-Wire Surveillance Kit |
PMLN8342A |
| 3-Wire Surveillance Kit |
PMLN8343A |
| WM500 Wireless Speaker Mic |
PMMN4127A |
| RM780 Speaker Microphone |
PMMN4128A |
| RM730 Speaker Microphone |
PMMN4131A |
| RM760 Speaker Microphone |
PMMN4140A |
Chargers
| Product |
Part Number |
| IMPRES 6-Way Charger UK |
PMPN4290 |
| IMPRES 6-Way Charger EU |
PMPN4289A |
| IMPRES Single Unit Charger UK |
PMPN4572A |
| IMPRES Single Unit Charger EU |
PMPN4577A |
| Travel Charger |
NNTN8525 |
Frequently Asked Questions
Is the Motorola R7a a replacement for the DP4400e?
Yes, the Motorola R7a is the next-generation replacement, offering improved audio performance and updated hardware.
Is the R7a suitable for security and events?
Yes, the R7a is widely used in security, events, transport, and industrial environments due to its durability and clear audio.
Does the Motorola R7a require a licence?
Yes, this is a licensed radio and requires an Ofcom licence for use in the UK.
What is the range of the Motorola R7a?
The range of the Motorola R7a depends on the environment. In open areas it can reach several kilometres, while in built-up areas range will be reduced due to buildings and obstacles.
What is the difference between VHF and UHF on the R7a?
VHF radios are generally better suited for open outdoor environments, while UHF radios perform better inside buildings and urban areas due to improved signal penetration.
Can the Motorola R7a be used with older Motorola radios?
Yes, the R7a can operate in analogue mode, allowing compatibility with older analogue Motorola radios during migration to digital systems.
Is the Motorola R7a waterproof?
The Motorola R7a is rated to IP68, meaning it is protected against dust and can withstand submersion in water under specified conditions.
Does the Motorola R7a support encryption?
Yes, the R7a supports Basic and Enhanced Privacy as standard, with optional AES-256 encryption available via software licence.
How long does the Motorola R7a battery last?
Battery life can last up to approximately 20 hours in digital mode depending on usage, making it suitable for full working shifts.
Can the Motorola R7a be used with repeaters?
Yes, the R7a is compatible with MOTOTRBO repeater systems, including IP Site Connect, to extend coverage over large areas or multiple locations.
Is the Motorola R7a suitable for noisy environments?
Yes, the R7a uses advanced noise suppression and intelligent audio technology to improve voice clarity in loud environments such as factories and events.
What accessories are compatible with the Motorola R7a?
The R7a supports a wide range of accessories including batteries, chargers, earpieces, remote speaker microphones, and carry solutions designed specifically for the R7 series.
What is the difference between R7a, R7 Capable, and R7 Premium?
The R7a is designed as a straightforward, easy-to-use radio. R7 Capable models allow additional features to be unlocked via licences, while R7 Premium models include most features enabled as standard.
Why Choose the Motorola R7a?
The Motorola R7a combines advanced audio technology, rugged design, and simple operation, making it a reliable communication solution for professional users across multiple industries.
