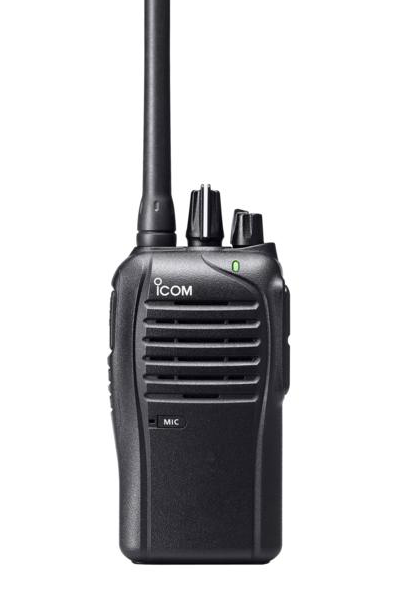

ICOM IDAS F4102D UHF Digital Two Way Radio
ICOM IDAS F4102D UHF Digital Two Way Radio
The new ICOM IDAS F4102D UHF Digital Two Way Radio from Radio-Shop.uk is an entry level hand portable radio that is small, simple to use and capable of both analogue and digital radio communications on a single channel.
The IC-F4102D series are incredibly simple to use and have selected functions which do not require an LCD and keypad. In addition, the IC-F4102D series are compatible with IDAS multi-site conventional and IDAS single-site trunking thus providing an affordable digital migration path from analogue.
Please click here to see the compatible accessories for this radio.
Entry Level IDAS Digital Handportable Series
The IC-F3102D/F4102D series provides basic operation in IDAS NXDN digital mode. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking.
Channel Announcement Feature
When you rotate the channel knob, the IC-F3102D/F4102D series announces the channel number in English, which is ideal for workers in dark environments.
Optional GPS Speaker-Microphone, HM-171GP
When used with new HM-171GP GPS speaker-microphone, the IC-F3102D/F4102D series can send own GPS position data with voice or emergency signal.
800mW Audio Output Power
The built-in bridge-tied load (BTL) amplifier provides a powerful 800mW* audio output from the large 45mm speaker. The radio delivers loud and intelligible audio even in noisy environments. (* Typical with internal speaker)
Simple Operation for Instant Communication
The IC-F3102D/F4102D series is so easy to use there's no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action, even while wearing gloves. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person.
Three Types of Batteries to choose from
The IC-F3102D/F4102D series has three types of battery packs and case to choose from. Lithium-Ion (Li-Ion) battery pack, BP- 265, Nickel metal hydride (Ni-MH) battery pack, BP-264 and battery case, BP-263 are selectable for your preference.
IP54 and MIL-STD-810-F Rugged Construction
The IC-F3102D/F4102D is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MIL-STD-810 environmental test. In short, this radio is built rugged!
Internal VOX Capability for Hands-Free Operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
5-Tone Encoder/Decoder
5-Tone signalling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.
CTCSS/DTCS Encoder/Decoder
The IC-F3102D/F4102D series has added CTCSS/DTCS high speed decoder to reduce the decode speed to nearly half of the conventional model IC-F15 series.
Scan Features
One or two priority channels can be monitored even while scanning other non-priority channels. The Tx channel and the talk back functions allow you to make a quick response while scanning.
Lone Worker Function
When the radio is not operated for a preset period, any radio operation is required with a beep sound. If the radio is not operated within that preset time, an emergency signal automatically transmits and alerts your co-worker or dispatcher to any potential trouble.
Other Features
• DTMF autodial • BIIS PTT ID transmission • Low battery alert • PC programmable • Transceiver-to-transceiver cloning • Talk around function • Time out timer • Enhanced emergency • 2-step power save • Surveillance function • 3-color LED (Red, Green, Orange)
Features
- IDAS conventional and IDAS single-site trunking compatible
- Digital/Analogue mixed operation
- Digital functionality built-in… no digital board required.
- Channel announcement feature
- Simple operation for instant communication
- 800mW (typical) loud and intelligible audio withBTL amplifier and large 45mm speaker
- CTCSS/DTCS tone encoder/decoder built-in
- 5-Tone encoder/decoder built-in
- Internal VOX function (Optional headset and adapter cable required.)
- 2 year warranty on transceiver, 1 year warranty on accessories
- Scan features
- Lone worker function
- DTMF autodial
- BIIS PTT ID transmission
- Transceiver-totransceiver
- Surveillance function
- 3-color LED (Red, Green, Orange)
Standard Package includes
- BP-265 Li-Ion Battery pack
- BC-193 Rapid desktop charger
- BC-06 Charger adapter
- MB-124 Belt clip
- Antenna
- User Manual
Basic Specifications
Frequency Range |
IC-F4102D (UHF 400-471MHz) |
Power Output |
IC-F4102D High Power: 4W Low Power: 1W |
Channel Capacity | 16 |
Operating Voltage | 7.5V |
Battery | 2000mAh (Li-Ion Battery) |
Antenna Impedence | 50 Ω |
Dimensions (WxHxD) | 58 x 111.5 x 36.5 mm with standard battery, not including antenna |
Weight (including belt clip, battery and antenna) |
IC-F4102D 310g |
For more specifications please download the product brochure.
