Kenwood TK-3701DT Walkie Talkie

Kenwood TK-3701D Walkie Talkie

£145.99

inc. VAT: £175.19

175.19
Walkie Talkies

Kenwood TK-3701D Digital Two Way Radio

The ProTalk TK-3701D is a license-free UHF digital transceiver featuring both digital dPMR446 and analogue PMR446 communications. The ready-to-use package comes with a transceiver, rechargeable battery, battery charger, mains adapter and belt clip. The TK-3701D is perfect for professional applications requiring a license-free, stylish, compact, light and easy to use digital two-way radio.

Digital & Analogue
The TK-3701D features the latest digital dPMR446 technology with a total of 48 preset channels (32 digital and 16 analogue) in 3 zones (2 digital and 1 analogue).

No licence required
Licence-free dPMR446 and PMR446 operation in an all-in-one package that’s ready for immediate use.

Industrial strength construction

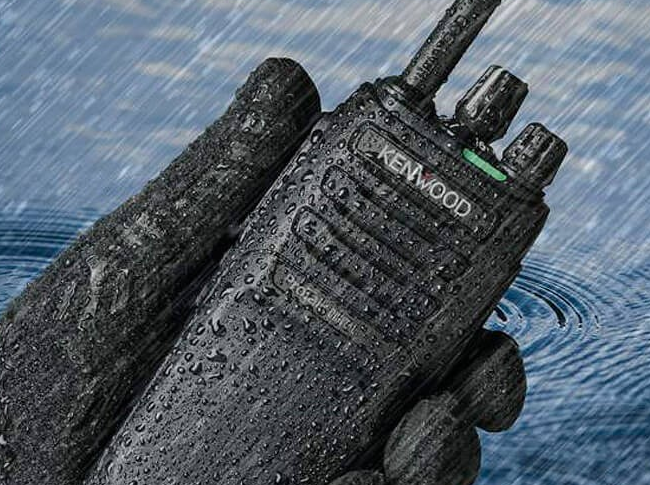

Compliant with IP54/55 and US MIL-STD 810 C, D, E, F, and G standards.

Powerful yet natural sound output
AMBE+2™ vocoder for natural audio with minimum delay; BTL audio amplifier for powerful 1 watt output.

Second PTT
Make use of the Second PTT for giving different instructions to different staff as the radio allows the use of main channel plus another channel*.

Kenwood Radio TK3701
Compatible with digital or analogue
This radio allows Digital and Analogue combined operation, which means it can handle both digital and analogue signals in a zone. This gives you the freedom to migrate at your own pace — whether you are ready to go fully digital, or use with the current analogue transceivers with a view to gradually switching to digital.

No licence required
The TK-3701D is a licence-free dPMR446 and PMR446 UHF digital transceiver. The ready-to-use package comes with a transceiver, rechargeable battery, battery charger, and belt clip. If you are looking for a radio system that covers only small areas without the need for a repeater, the TK-3701D is an ideal choice.

Selectable 7-colour LED*
A large 7-colour LED indicator on the top panel illuminates to notify multi-status functions including power-on and different unit identification.

*PC programming required.

Buy before 2.00pm for Next Day Delivery

This radio can be used with your existing Kenwood TK-3501 straight out of the box as the first group of frequencies match the old Kenwood TK-3501 and Kenwood TK-3301 Licence Free Radio.

Please click here to see the compatible accessories for this radio.

Why Buy From Radio-Shop UK

Easy to Use – No Licence Required
This licence free two way radio comes with a 2000mAh Li-Ion rechargeable battery, battery charger and belt clip; there’s no need to buy extra accessories for basic operation. It is ready to use right away.

Not Just Digital
The TK-3701D is effectively two radios in one – digital and analogue – operating on 6.25 kHz in digital and on 12.5 kHz in analogue. The user can easily switch between analogue and digital channels.

Enhanced Audio Quality
AMBE+2TM vocoder technology accurately replicates natural human speech nuances for superior voice quality, even in noisy environments . Additionally, the powerful BTL amplifier and large size speaker deliver 1 watt audio output, providing much clearer and crisper audio.

48 Channels / 3 Zones
The TK-3701D can be used with three conventional zones, offering up to 16 channels per zone.

Zone 1 - Kenwood TK3301 & Kenwood TK3501 Analogue Frequencies

Zone 2 - Kenwood Digital Frequencies

Zone 3 - Kenwood Digital Frequencies

ETSI Compliant
ETSI TS102 490 compliant dPMR 446

Features

  • ETSI TS102 490 Compliant dPMR446
  • Dual Mode Analogue / Digital – User Selectable 48 Channels (32 Digital Channels and 16 analogue channels)
  • Industry-standard Digital AMBE2+ Vocoder
  • User-Programmable Features
  • Extended Range and Improved RFIPerformance
  • No License Required
  • Adjustable Microphone Gain
  • Voice Annunciation of Channels
  • Built-in VOX
  • CTCSS/DQT Signalling Tones
  • Scanning Functions
  • Electronic Serial Number (ESN)
  • Clear Sound with Voice Compander Function
  • IP54, IP55 and US-MIL-STD 810 C/D/E/F/G

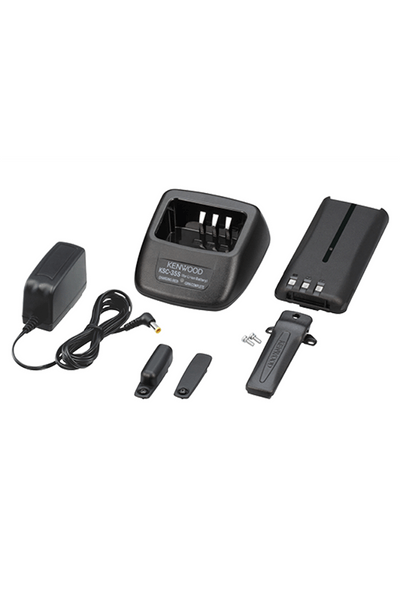

Standard Package includes

  • TK-3701DT dPMR446
  • Instruction Manual
  • Belt Clip (KBH-10)
  • Rapid Charger (KSC-35)
  • Li-Ion Battery (KNB-45L)

Basic Specifications

Frequency Range 446.1 - 446.2 MHz
Channel Capacity 48 (32 Digital and 16 Analogue)
Number of Zones 3
Operating Voltage 7.5V
Battery 2000mAh (Li-Ion Battery)
Antenna Impedence 50 Ω
Dimensions (WxHxD) 54 x 123 x 35.5 mm with standard battery, not including antenna
Weight (including battery) 250g



For more specifications please download the product brochure.
