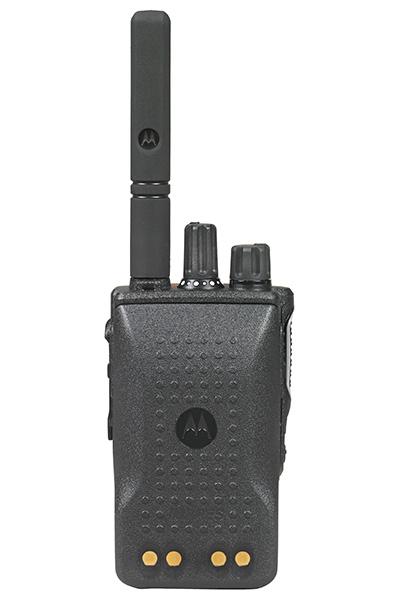

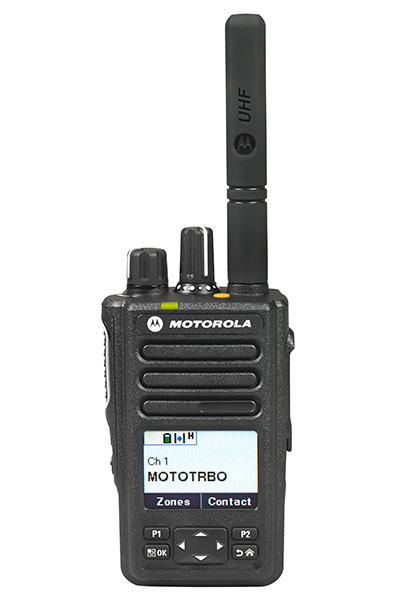

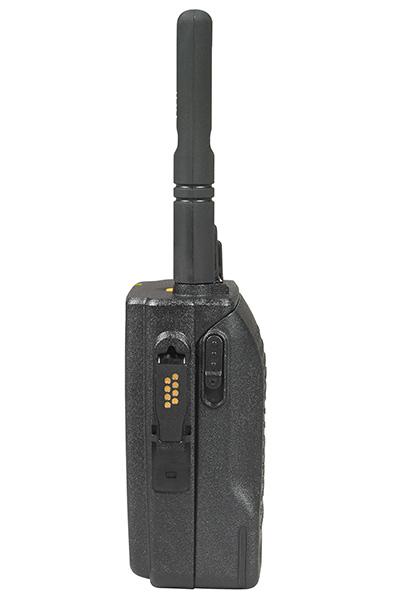

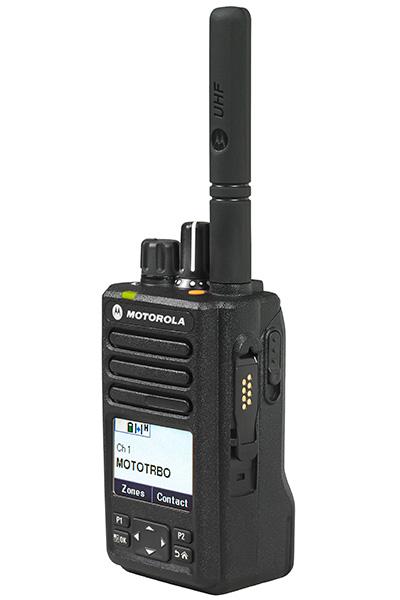

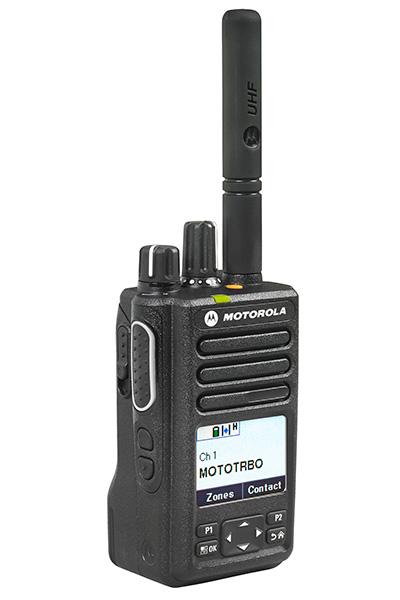

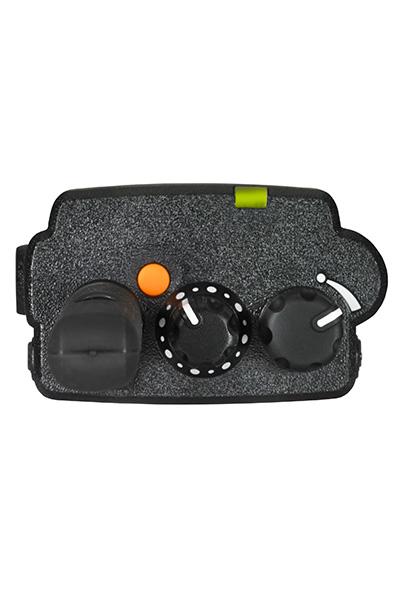

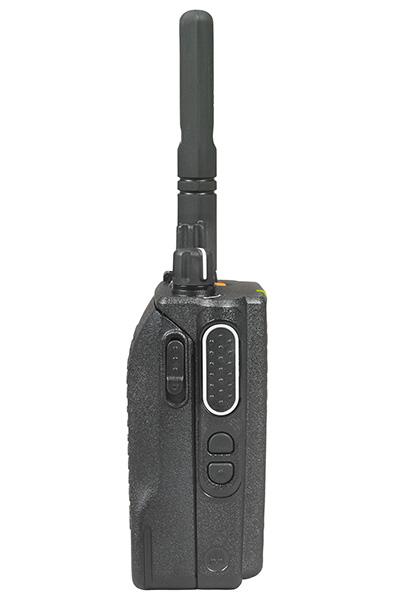

The Motorola DP3661e Two Way Radio from Radio-Shop.uk is designed for the mobile professional who needs effective communications. It has a compact design and high-performance integrated voice and data. This radio is tested to military standards for extreme ruggedness, is TIA certified and is rated IP68 for almost complete immunity to dust and water.
The prominent orange emergency button on the Motorola DP3661e summons help with one touch, using 'Transmit Interrupt' to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen and can automatically call for assistance.
Bluetooth® audio lets you talk without wires. Integrated Wi-Fi enables remote software updates. Indoor and outdoor location-tracking capabilities provide you with total visibility of your resources. Support for trunking, as well as legacy analogue technology, means you can keep your organisation connected as it grows.
The DP3661e enhances the DP3441e offering with a display and a limited keypad. These allow users to send and receive text messages, view battery life status, perform front panel programming, offer a notification list and complete channel and radio settings.
Please click here to see the compatible accessories for this radio.
Features
- VHF (136-174MHz); UHF (403-527MHz)
- 1000 channels
- Large Full-colour, 5-line display
- Easy-to-use menu navigation keys enable intuitive user interface
- 4 programmable buttons to improve ease-of-use and increase operator efficiency
- Tri-colour LED for clear visual feedback on radio operating status
- Emergency button & Emergency Calls
- Quick, easy-to-use Group, Individual and All-call capability
- Digital Phone Patch capability
- PTT ID
- Remote Monitor features
- Channel scanning schemes
- Basic / Enhanced Privacy
- AES256 Encryption via Software Purchase
- VOX Capability
- Transmit Interrupt
- Lone Worker
- Over the Air Programming (OTAP)
- 5 Tone Signaling
- Option Board Capability
- Integrated GNSS (GPS and GLONASS)
- Integrated Bluetooth 4.0 LE for wireless and data
- Integrated Wi-Fi (OTA Software Updates and ADK) via Software Purchase
- Integrated man-down via Software Purchase
- Indoor Location Tracking via Software Purchase
- Intelligent Audio
- IP68 & TIA Certified
- Direct Mode (including Dual Capacity Direct Mode)
- IP Site Connect (Single and Multi-Site)
- Capacity Plus (Single and Multi-Site)
- Capacity Max via Software Purchase
- Memory enhancement (128MB RAM & 256MB Flash memory)
- IMPRES battery support
Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.
What's in the Box?
- Motorola DP3661e Two Way Radio - 1 Unit
- Battery Options
- Single Unit Charger Options
- Antenna Options
- Compact Holster Option
- Dust Cover
- In-box Documentation
Specifications
| Frequency Range |
VHF 136 - 174 MHz UHF 403 - 527 Mhz |
| Power Output |
VHF 1-5W UHF 1-4W |
| Channel Capacity |
1000 |
| Power Supply |
7.5V |
| Battery |
Li-Ion 1700 mAh |
| Antenna Impedence |
50 Ω |
| Dimensions (HxWxD) |
100 x 55 x 36 mm with standard battery, not including antenna |
| Weight |
254g |
Motorola DP3661e Specification Sheet
