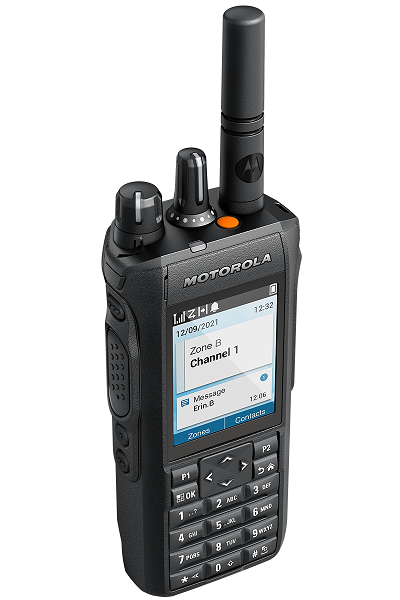

Motorola R7 Capable (FKP) Digital Two Way Radio
Mototrbo R7 Capable Radio - Full-Keypad
The Motorola Full Keypad and display offers you additional capabilities like caller ID, Alarm Notifications and Text Messaging. The crystal-clear display enables you to carry out so many additional features you simply can't do with the Non-Keypad version.
The Motorola R7 Capable comes with all the premium features preinstalled but not activated. This enables you at any point in the future (Charge Licence Key) to enhance your radio network as your needs and demands increase .
Features available to activate at a later date:
- Man Down
- Indoor location tracking (used with SmartPTT or Trbonet)
- GNSS (GPS device built into the radio so you can be tracked as part of a digital network)
- Bluetooth 5.2 (Connection to Bluetooth Audio accessories & Beacons)
- Wi-Fi 2.4 & 5Ghz (enables radio updates & programming via Wi-Fi)
- Audio Recording
*Please note AES 256 Bit Encryption still requires an additional Licence key*
The Mototrbo R7 also uses advanced dual Microphone Suppression offering a noise cancellation feature ensuring crystal voice communications is sent and received.
The ideal replacement for the Motorola DP4400e. This radio is built to military standard 810D with IP68 Dust & Water Intrusion rating. The radio is easy replacement and is ideal for 85% of our customers whether that be in the events and security industry or used for airports and transport links.
The radio is very easy to use and the non-keypad display means it's a simple Push to Talk solution offering a professional walkie talkie for the business user. The radio has an emergency button located on the top of the radio which can be held to notify other staff members of any dangers or concerns.
This radio is perfect for security companies working in both urban and rural environents. The VHF version has always been ideal for rural environments like oil fields, security compounds offering long distance with its new antenna technology working alongside digital networks and mobile vehicle radios. The UHF is often used for large building with concrete construction as the frequency is designed to bounce off the walls offering better capability in urban environments like cities and large shopping centres.
The R7 handheld Radio uses the same chargers as the Motorola DP4000 series so you can keep cost down when migrating, but the batteries are different as well as the audio connector for accessories.
The radio works in both digital or analogue mode so you can use it with your old fleet of analogue radios and then at the switch of a channel, work with your new digital radios on other projects.
The radio also comes with the enhanced privacy option as standard offering you 40-bit encryption which will work alongside your existing DP4000 fleet of radios. The R7a can also work on the IP site connect repeater networks extending the range and coverage of your network.
The radio also uses the latest noise filters to remove and reduce background noise in any environment. Ensuring you communications are sent in clear voice so they can be easily heard. This makes the radios ideal for factories, quarries, refineries and loud hospitality events like concerts & Festivals.
MOTOTRBO R7 Options
The new Motorola R7 radio series is here offering a replacement for the Motorola DP4000 series. The models come in 3 main options.
The R7a - The new radio for the everyday user offering a no display but simple and easy to use but built to last. It comes with all the features for 85% of our customers.
The R7 Capable - The radio is supplied with additional features that can be activated at any time via purchasing additional product keys and unlocking them.
The R7 Premium - The radio is supplied with all the features unlocked apart from AES 256bit Encryption that still needs to be purchased separately.
Please click here to see the compatible accessories for this radio.
- VHF (136-174MHz); UHF (400-527MHz)
- 64 channels
- Large, textured push-to-talk button for ease of use
- Analogue & Digital
- Tri-colour LED for clear visual feedback on radio operating status
- Emergency button
- Quick, easy-to-use Group, Individual and All-call capability
- Sophisticated Emergency Calls
- Voice Announcement
- Remote Monitor features
- Home Channel Reminder
- Priority Scan
- Late Entry
- Basic / Enhanced Privacy
- AES256 Encryption via Software Purchase
- VOX Capability
- Transmit Interrupt
- Intelligent Audio allowing the radio volume to automatically adjust to compensate for background noise
- Direct Mode (including Dual Capacity Direct Mode)
- IP Site Connect (Single and Multi-Site)
- Intelligent Audio in Analogue & Digital Mode
- IMPRES Audio
- Automatic Acoustic Feedback Suppressor
- Microphone Distortion Control
- User Selectable Audio Profile
- Trill Enhancement
- Advanced Dual Microphone Noise Suppression
Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.
What's in the Box?
- Motorola R7 Handheld Radio - 1 Unit
- IMPRES Single-Unit Charger
- Dust Cover
- Belt Clip Options
- In-box Documentation
|R7 FKP Capable||MDH06JDN9WA2AN||VHF||136-174MHZ|
|R7 FKP Capable||MDH06RDN9WA2AN||UHF||400-527MHZ|
|Frequency Range||VHF 136 - 174 MHz UHF 400 - 527 Mhz|
|Power Output||VHF 1-5W UHF 1-4W|
|Battery Life - 2200mAh||19 hr Digital / 14.5 hr Analogue|
|RX Rated Audio Power Output||3W|
|Battery||2450mAh Core Battery|
|Antenna Impedance||50 Ω|
|Dimensions (HxWxD)||132 x 56 x 37 mm|
For more details, please download the product brochure
Motorola R7 Accessories
There is a very large selection of Motorola R7 Radio Accessories available and we are constantly updating our website as and when they are released. Please see the latest parts below and if the item does not have a link to the product page please email us firstname.lastname@example.org and we will be able to provide you with a price and lead time.
|Motorola R7 Batteries||Part|
|IMPRES Li-Ion 3200mAh, IP68, TIA||PMNN4810|
|IMPRES Li-Ion 2850mAh, IP68||PMNN4809A|
|IMPRES Li-Ion 2200mAh, IP68||PMNN4807A|
|Motorola Original Li-Ion 2450mAh||PMNN4808A|
|Motorola R7 Earpieces & RSM||Part|
|1-Wire IMPRES™ Survelliance Kit, with Audio Translucent Tube||PMLN8341A|
|2-Wire IMPRES™ Survelliance Kit, with Audio Translucent Tube||PMLN8342A|
|3-Wire IMPRES™ Survelliance Kit, with Audio Translucent Tube||PMLN8343A|
|WM500 Wireless PoC Remote Speaker Microphone||PMMN4127A|
|RM780 IMPRES™ Remote Speaker Microphone||PMMN4128A|
|RM730 IMPRES™ Remote Speaker Microphone||PMMN4131A|
|RM760 IMPRES™ Remote Speaker Microphone||PMMN4140A|
|Motorola R7 Chargers - Same as DP4000 Series||Part|
|IMPRES 6-Way Multi-Unit Charger UK||PMPN4290|
|IMPRES 6-Way Multi-Unit Charger Euro||PMPN4289A|
|MOTOTRBO Travel Charger - Cigrette Lighter||NNTN8525|
|IMPRES Single Unit Charger (UK Switch Mode PSU)||PMPN4572A|
|IMPRES Single Unit Charger (Euro Switch Mode PSU)||PMPN4577A|
|Single Charger Power Supply UK Adaptor||PS000037A02|
|Single Charger Power Supply Euro Adaptor||PS000037A01|
|Motorola R7 Carry Cases||Part|
|Hard Leather Carry Case, 3" Swivel Belt Loop, Display||PMLN8299A|
|Hard Leather Carry Case, 2.5" Swivel Belt Loop, Display||PMLN8300A|
|Hard Leather Carry Case, 3" Fixed Belt Loop, Display||PMLN8301A|
|Hard Leather Carry Case, 3" Swivel Belt Loop, Non Display||PMLN8302A|
|Hard Leather Carry Case, 2.5" Swivel Belt Loop, Non Display||PMLN8303A|
|Hard Leather Carry Case, 3 Fixed Belt Loop, Non Display||PMLN8304A|
|2.5" Belt Clip||PMLN7008A|
|2" Belt Clip||PMLN4651A|
|Universal Nylon Chest Pack||HLN6602A|
|Motorola R7 Peltor Headsets||Part|
|Noise Cancelling Heavy Duty Headset - Neckband Version - TIA495||PMLN8085|
|Noise Cancelling Heavy Duty Headset - Headband Version - TIA495||PMLN8086A|
|3M™ Peltor Nexus Body Push-to-Talk Adapter||PMLN8297A|
|3M™ Peltor Headband Headset w/Nexus Connector||PMLN8265A|
|3M™ Peltor Neckband Headset w/Nexus Connector||PMLN8266A|
|3M™ Peltor Hard Hat Headset Attachment w/Nexus Connector||PMLN8267A|
