Hytera TM600 Analogue Mobile Two Way Radio
Hytera TM600 Licensed Analogue Mobile Two Way Radio
This product has now been discontinued
The high-performance, yet simple-to-use Hytera TM600 Licensed Analogue Mobile Two Way Radio from Radio-Shop.uk is created to give you the immediate, reliable communications you need to keep mobile teams working efficiently. HYT’s voice compander audio enhancement and a powerful 13W external speaker ensure superb clear, crisp sound, even in noisy environments. The Hytera TM600 Licensed Analogue Mobile Two Way Radio's compact design makes these radios ideal when mounting space is a constraint.
Features
Compact Design
These compact mobile radios are ideal for mounting when space is constraint.
Wide-Band Coverage
These radios provide wide band capability for users requiring a large range of frequencies.
Powerful Audio
HYT’s voice compander audio enhancement and a powerful 13W external speaker will provide superb clear, crisp sound, even in noisy environments.
Built-in Scrambler
Maintaining private and secure communications is increasingly important, with potentially sensitive information flowing back and forth. The scrambler feature provides enhanced security for your important and private communications.
HDC2400TM and HDC1200 signalling (Only for 2-Tone version)
The HDC2400TM signalling is exclusive to HYT, and contributes to the system to achieve features including ANI (Automatic Number Identification), Individual Call, Group Call, Broadcast, Stun, Short Message and Data Transmission. The HDC1200 Signalling is compatible with MDC1200, and allows functions including PTT ID Encode, Emergency Encode, Radio Check Decode,Stun & Revive, Individual Call, Group Call and Broadcast.
Automatic Number Identification (ANI)
After HDC2400TM or HDC1200 signalling is received, the radio will display the ID or alias of the other party. The radio firmware supports a selective call list containing up to 128 (128 for TM-610, 8 for TM-600) items.
Built-in Modem
The built-in 1200/2400bps MSK modulator offers data transmission capability.*
Emergency Alarm
The emergency button allows for a transmission of a signal indicating an emergency situation.
Stun and Revive
The stun function permits an authorised radio to remote disable another lost radio. This function can ensure you higher security and is perfect for the radio rental business.
A stunned radio will return to operational use when the revive code is received.
DTMF Function
The DTMF calling function offers flexible dialling procedures of alias dialling, auto dial and redial as well as manual dialling. Customised, user friendly number storage can be used for your most often called numbers.
Public Address (PA)
The public address feature feeds microphone audio through a powerful PA amplifier to the external speaker, offering robust, out of vehicle, audio clarity.

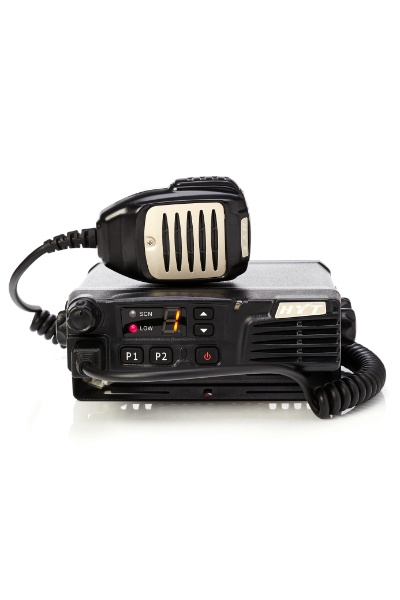

8-Segment Numeric LED
The numeric 8 segment display indicates the channel of operation. LEDs also indicate channel scan and transmit power operation.
Lone Worker
The lone worker feature provides added security and safety for individuals who work remotely from their team. Since this function is enabled, the radio will emit an alert tone after the preset time elapses, then the user must press any key, otherwise the emergency procedure will be activated.
Ignition Sense, Timed Power Off
When this function is enabled, you have to connect the ignition wire to the rear panel of the radio so that you can turn on/off the radio by igniting/stalling the car. The radio can only be turned on by igniting the car and will be turned off automatically within the preset time after the car stalls.
4 Programmable Back-Lit Keys
Provides immediate and easy access to your most often used features.
Channel Scan
The TM-600’s scan feature offers priority channel scan, selectable priority channel, nuisance channel temporary delete, etc.
Wired Cloning / MSK Wireless Cloning
Allows users to quickly and easily duplicate one radio’s parameters into another radio.
Basic Package includes
- Power cable
- Remote speaker mic
- Installation bracket
- User manual
- 24 months warranty on transceiver
Basic Specifications
Frequency Range | VHF 136 - 174 Mhz UHF 400 - 470 Mhz |
Power Output | High Power: 25W, Low Power: 5W |
Channel Capacity | 8 |
Operating Voltage | 13.6 V +15% |
Antenna Impedence | 50 Ω |
Dimensions (HxWxD) | 152 X 43 X 125mm |
Weight | 1kg |
For more specifications please download the product brochure.
