Kenwood NX-3320E UHF Digital Two Way Radio

by Kenwood
Original price £528.99 - Original price £528.99
Original price
£528.99 - £528.99
Current price £528.99
Walkie Talkies

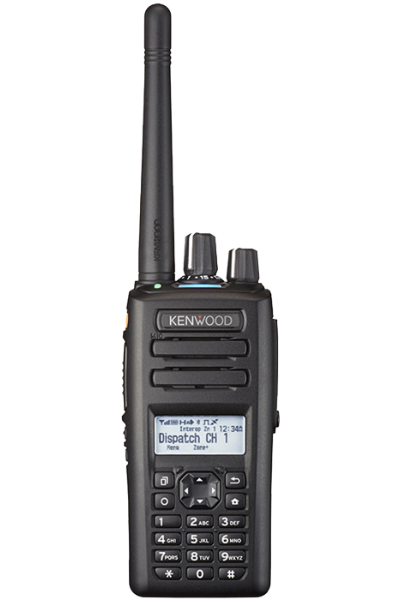

Kenwood NX-3320E UHF NEXEDGE/DMR/Analogue Portable Two Way Radio

The Kenwood NX-3320E UHF NEXEDGE/DMR/Analogue Portable Two Way Radio with GPS/Bluetooth/Full Keypad from is one of the NX-3000 Series of portable radios that will shine in a host of different business categories. In addition to the great convenience afforded by a host of powerful features, optional software upgrades facilitate after-purchase enhancements to create a radio that perfectly matches specific customer requirements. And thanks to the NX-3000’s support for multiple protocols, it can be seamlessly integrated into an existing system, where it will instantly become an indispensable communications asset.

This versatile handheld radio supports both NXDN and DMR digital protocols as well as mixed digital & FM analogue operation, enabling it to serve with distinction in a wide range of enterprise and operation-critical applications. Compact yet designed with durability in mind, it’s packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. Three different models are available: Full Keypad model with LCD, Standard Keypad model with LCD and a large 4-way D-pad, and the Basic Model without LCD or keypad. Additionally, for expansion capability a software license certification system facilitates extensive customisation.

Please click here to see the compatible accessories for this radio

Why Buy Two Way Radios From


  • Multi-protocol digital radio - designed to operate under an NXDN or DMR digital, and FM analogue protocols
  • NXDN Conventional and Typr-C & Gen2 Trunking
  • DMR Tier II, DMR Auto Slot Select & Site Roaming
  • Mixed Digital & FM Analogue Operation allows gradual migration at your own pace
  • 7-color Light Bar Indicator on the top panel
  • Built-in GPS Receiver/Antenna for effective fleet management
  • Built-in Bluetooth for hands-free communication - Applicable Bluetooth profiles: HSP (Headset Profile provided) and SPP (Serial Port Profile - available as an option)
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventionals protocols
  • Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
  • IP54/55/67 and MIL-STD-810 C/D/E/F/G
  • 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters
  • 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
  • 4-way Directional-pad (D-pad) for intuitive control and operation

    What's in the Box?

    • Belt Clip
    • Instruction Manual
    • Screw Set
    • Antenna Stubby
    • Lithium Battery
    • Charger


    NOTE: The 24 months warranty only applies to the radio, it does not apply to any batteries or accessories shipped within the model package. Service From the Start packages are also available.

    Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.


    Frequency Range 400 - 520 MHz
    Number of Channels 260
    Number of Zones 128
    Channel Spacing - Analogue - Wide/Mid/Narrow 25 kHz/20 kHz/12.5 kHz
    Modulation Limiting - Analogue ± 5.0 kHz at 25 kHz
    ± 4.0 kHz at 20 kHz
    ± 2.5 kHz at 12.5 kHz
    Channel Spacing - Digital - Wide/Narrow 12.5 kHz/6.25 kHz
    Battery Life With KNB-55L: ± 8h (FDMA) / ± 9.5 h (TDMA)
    With KNB-56N: ± 8h (FDMA) / ± 9.0 h (TDMA)
    With KNB-57L: ± 11h (FDMA) / ± 13.5 h (TDMA)
    - 5-5-90 -
    Frequency Stability ± 1 ppm (-30 °C to + 60 °C)
    Operating Temperature Range -30 °C to + 60 °C
    Operating Voltage 7.5 V DC ± 20%
    Dimensions With KNB-55L: 56.0 x 119.6 x 36.4 mm
    With KNB-56N: 56.0 x 119.6 x 42.7 mm
    With KNB-57L: 56.0 x 119.6 x 39.0 mm
    Radio only: 56.0 x 119.6 x 36.4 mm

    - Projections not included -
    Weight (net) With KNB-55L: 315 g
    With KNB-56N: 410 g
    With KNB-57L: 340 g
    Radio only: 220 g

    For more information and specifications please download the NX3000 Series Product Brochure and the NX-3320E Product Specification
