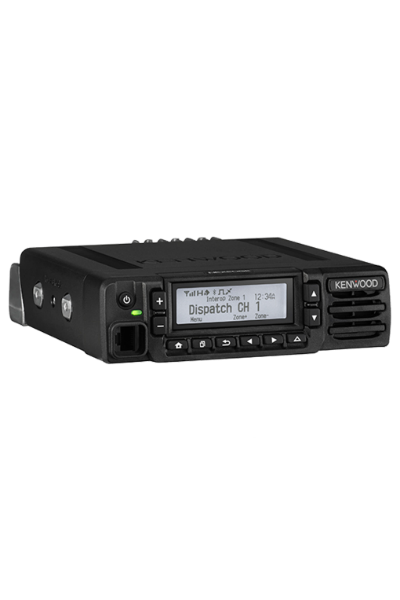

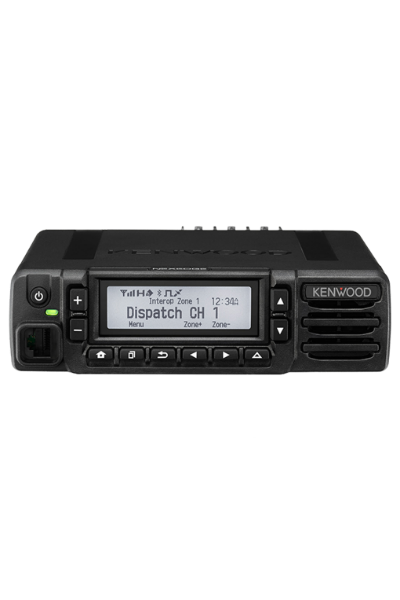

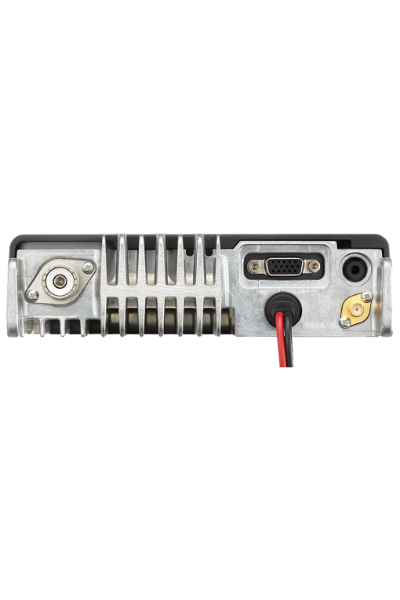

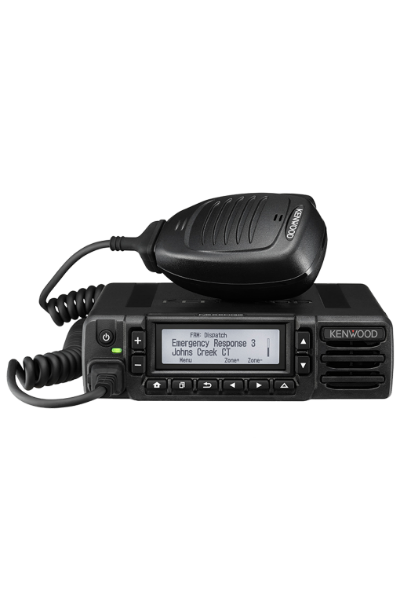

Kenwood NX-3820GE UHF NEXEDGE/DMR/Analogue Mobile Radio with GPS/Bluetooth

by Kenwood
Original price £583.99 - Original price £583.99
Original price
£583.99 - £583.99
Current price £583.99
Walkie Talkies

Kenwood NX-3820GE UHF NEXEDGE/DMR/Analogue Mobile Radio with GPS/Bluetooth

The Kenwood NX-3820GE UHF NEXEDGE/DMR/Analogue Mobile Radio with GPS/Bluetooth from supports both NXDN and DMR digital protocols as well as mixed digital & FM analogue operation, enabling it to serve with distinction in a wide range of enterprise and operation-critical applications.

Designed with flexibility in mind, it’s packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. And providing greater freedom of installation, the radio’s front panel can be used as a remote control
head (this requires an optional upgrade, to be available in future). Additionally, for expansion capability a software license certification system facilitates extensive customisation.

Please click here to see the compatible accessories for this radio

Why Buy Two Way Radios From


  • Multi-protocol digital radio - designed to operate under an NXDN or DMR digital, and FM analogue protocols
  • NXDN Conventional and Type-C & Gen2 Trunking
  • DMR Tier II, DMR Auto Slot Select & Site Roaming
  • Mixed Digital & FM Analogue Operation allows gradual migration at your own pace
  • 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters
  • 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
  • 7-color LED indicator
  • External and Internal Speaker Switching
  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
  • MIL-STD-810 C/D/E/F/G
  • Built-in GPS Receiver/Antenna for effective fleet management
  • Built-in Bluetooth for hands-free operation - Applicable Bluetooth profiles: HSP (Headset Profile provided) and SPP (Serial Port Profile available as an option)

Basic Package includes

  • D.C. Cable
  • Fuse
  • Instruction Manual
  • Mounting Bracket
  • Screw Set

NOTE: The 24 months warranty only applies to the radio, it does not apply to any batteries or accessories shipped within the model package. Service From the Start packages are also available.

Please remember all Companies/Individuals using a Licensed Radio require an Ofcom Licence with which we can assist.

Basic Specifications

Frequency Range 400 - 470 MHz
Number of Channels 512
Number of Zones 128
Channel Spacing - Analogue - Wide/Mid/Narrow 25 kHz/20 kHz/12.5 kHz
Modulation Limiting - Analogue ± 5.0 kHz at 25 kHz
± 4.0 kHz at 20 kHz
± 2.5 kHz at 12.5 kHz
Channel Spacing - Digital - Wide/Narrow 12.5 kHz/6.25 kHz
Current Drain Standby: 0.45 A
Receive: 2.3 A
Transmit: 9.0 A
Frequency Stability ± 1 ppm (-30 °C to + 60 °C)
Operating Temperature Range -30 °C to + 60 °C
Power Supply 13.2 V DC (10.8 - 15.6 V DC)
Dimensions W x H x D: 160 x 43 x 160 mm
- Radio with Control Head, projections not included -
Weight (net) 1.2 kg
- Radio with Control Head -

For more information and specifications please download the
NX3000 Series Product Brochure and the NX-3820GE Product Specification
